Case Study
bCUBE+
Real-time PCR machine

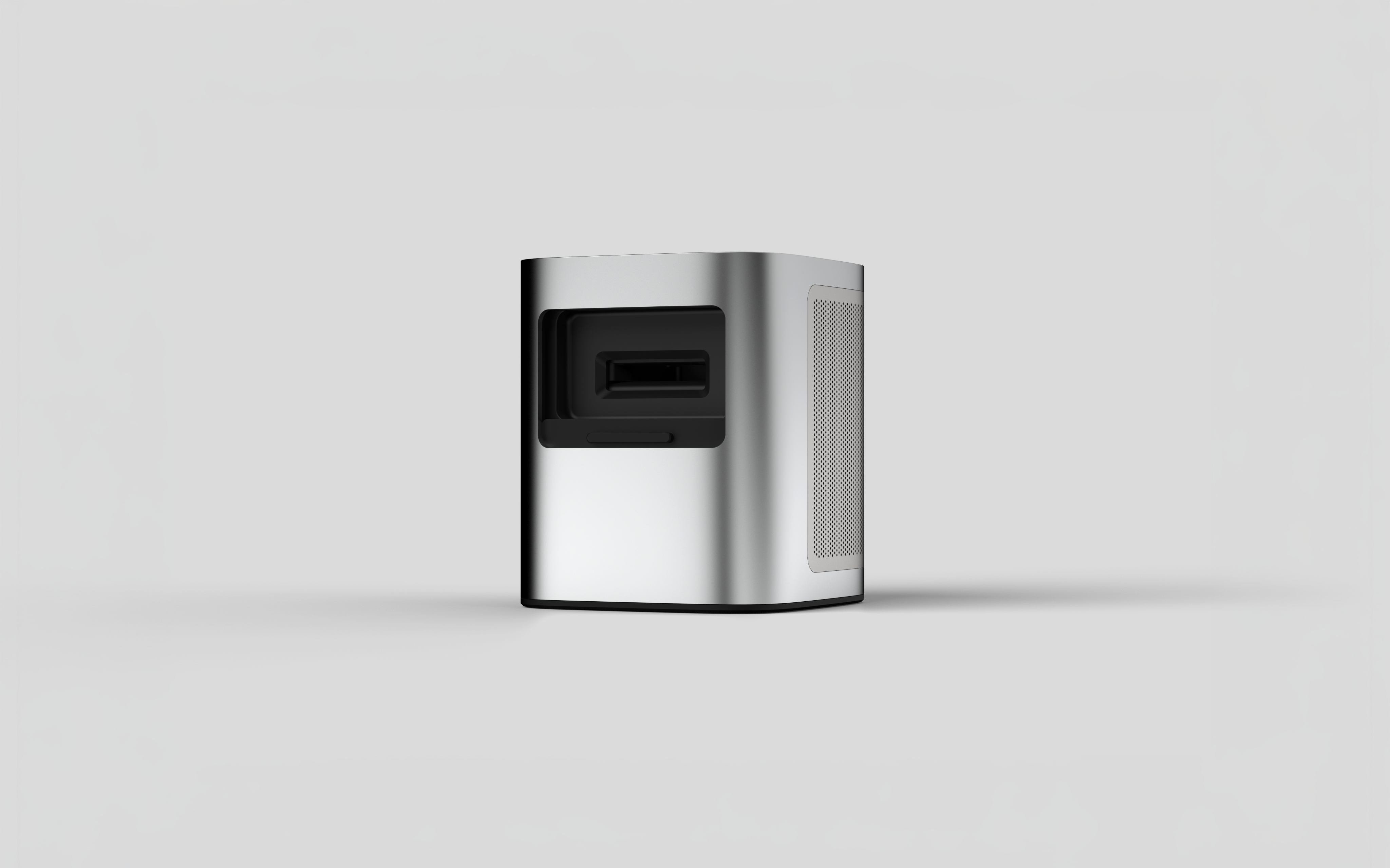

The Hyris bCUBE+ is a compact and portable molecular diagnostics device designed to perform rapid genetic testing on-site. Weighing roughly 1 kg, it is a miniaturised machine able to amplify, detect and quantify DNA/RNA molecules.
When: 2023
Course: Politecnico di Milano, Final Master’s Degree Thesis Project
What is DNA amplification

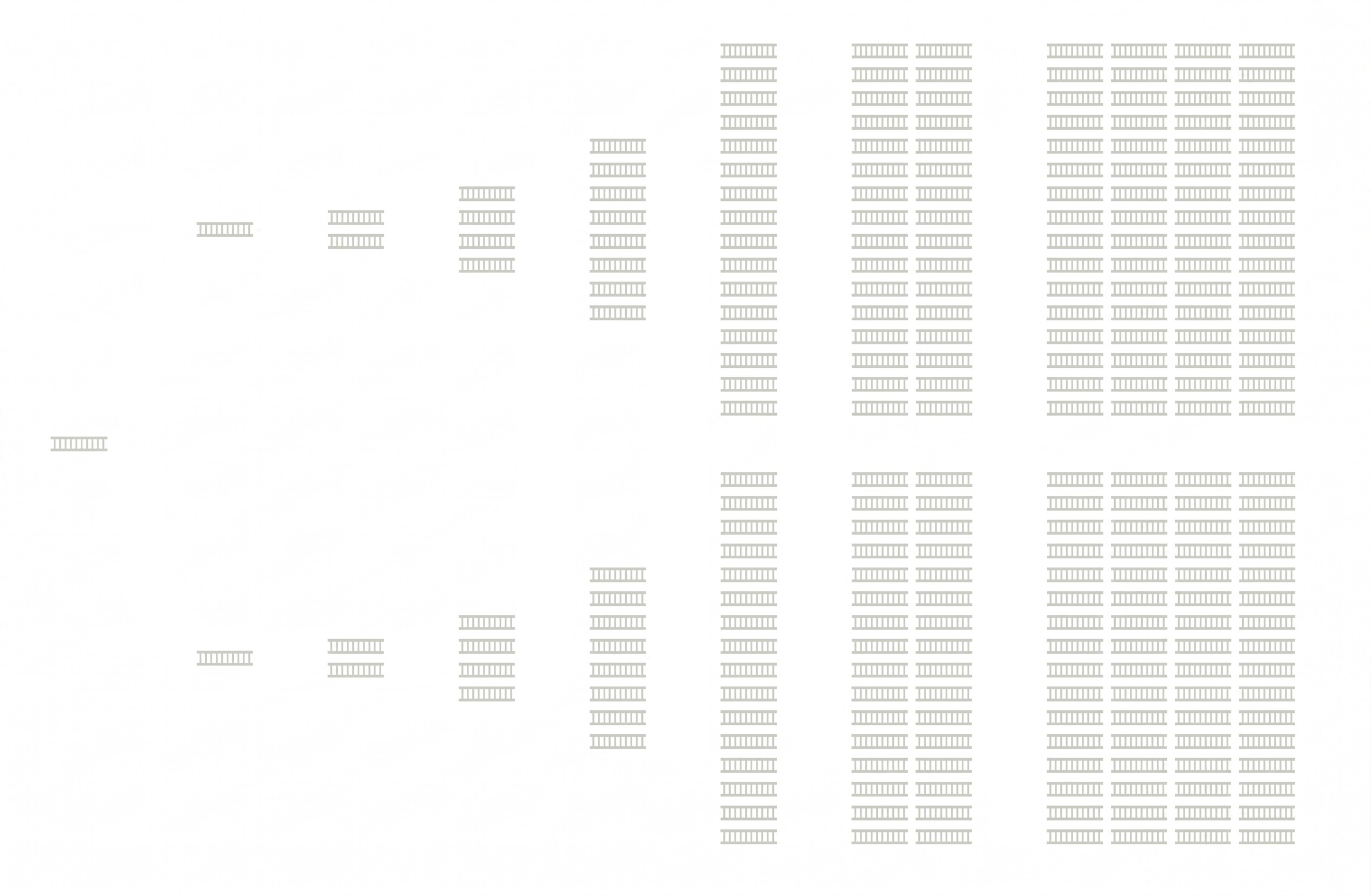

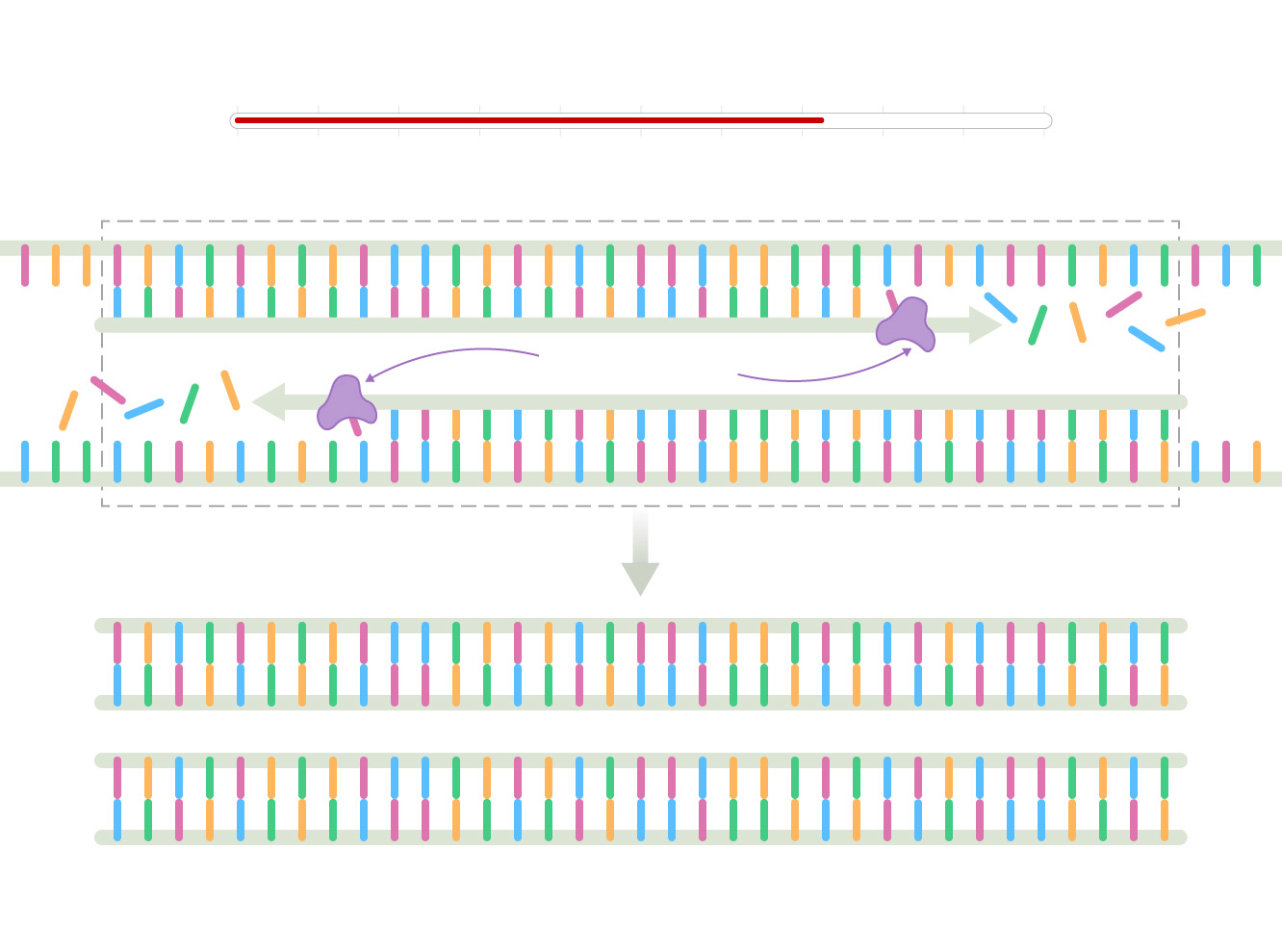

The process is elegant and simple: heat a DNA molecule to separate the double helix into two strands, and use each strand as a template for making a copy, much like how DNA unspools and copies itself inside our cells.
Step 0

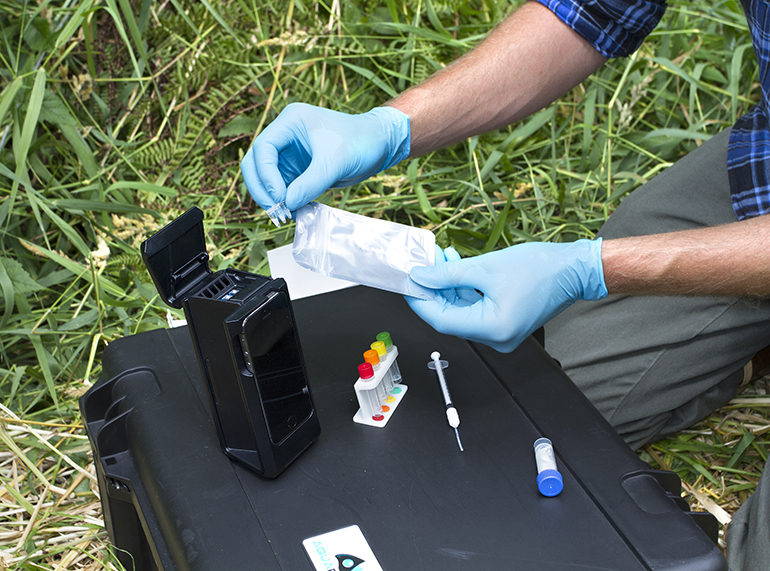

Sample collection
Step 1

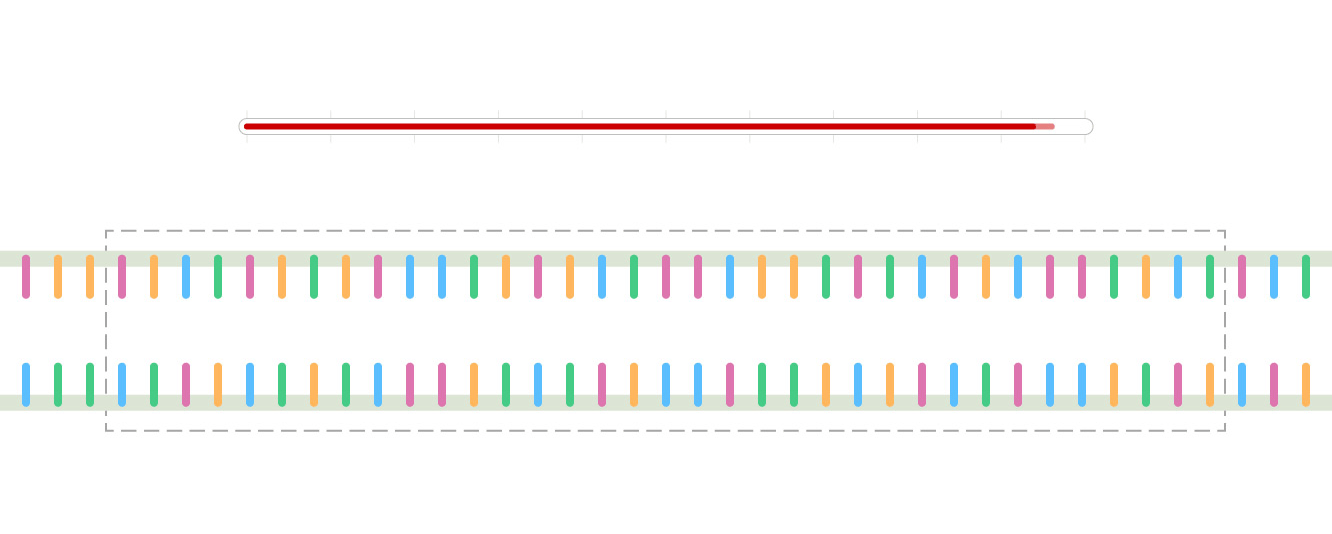

Separate the DNA strands
Step 2

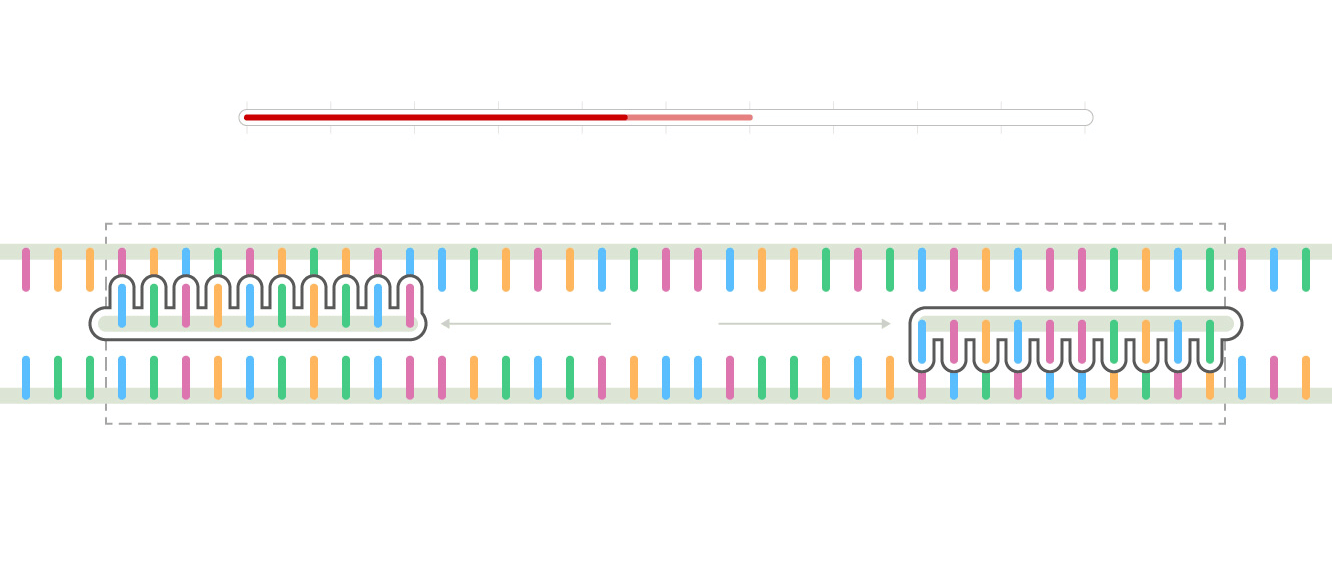

Target the area to be copied
Step 3
Extend the target area
Step 4
Repeat 30 times to get billions of copies
Endless applications possible
PCR is a rapidly evolving technology with an exceptionally broad range of applications, from healthcare and drug development to forensics, environmental analysis, and research. Its versatility makes it a critical tool across industries, with continuously expanding potential.
Healthcare
Environmental
Food science
Veterinary
Research
Forensic science

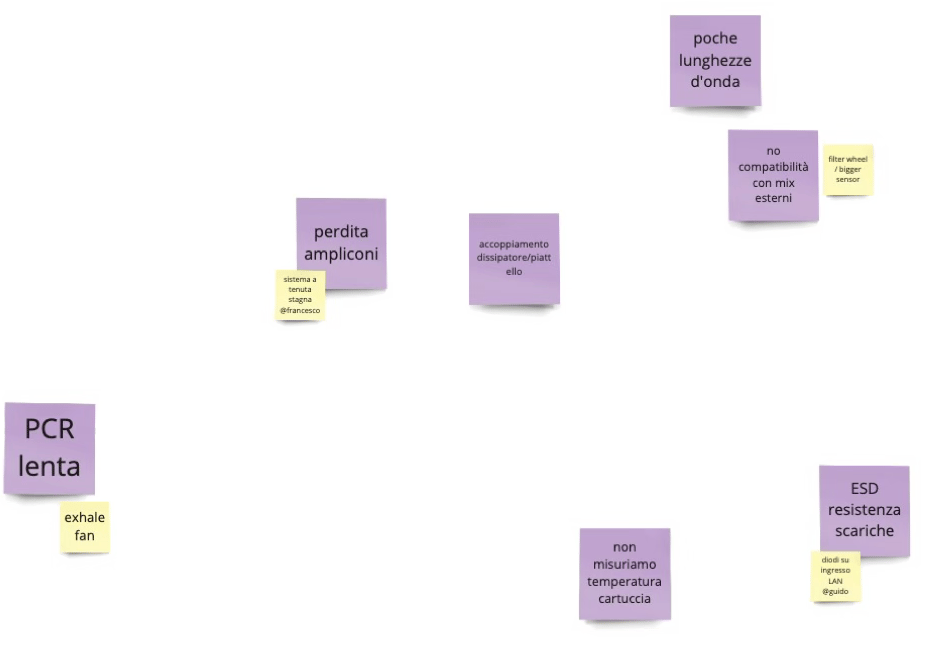

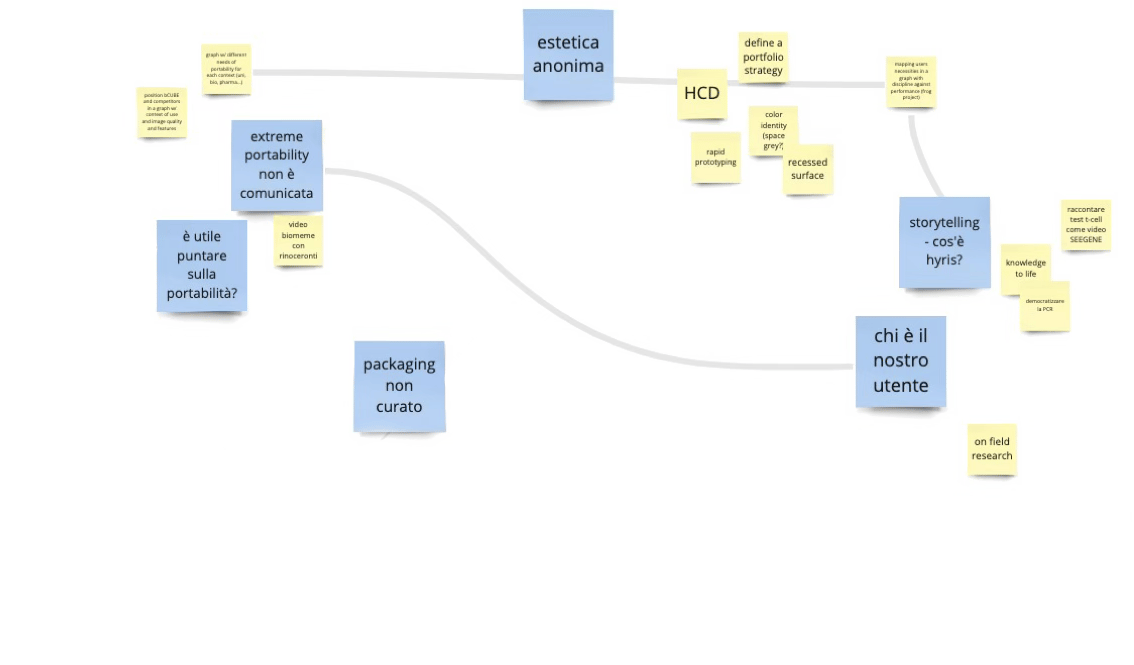

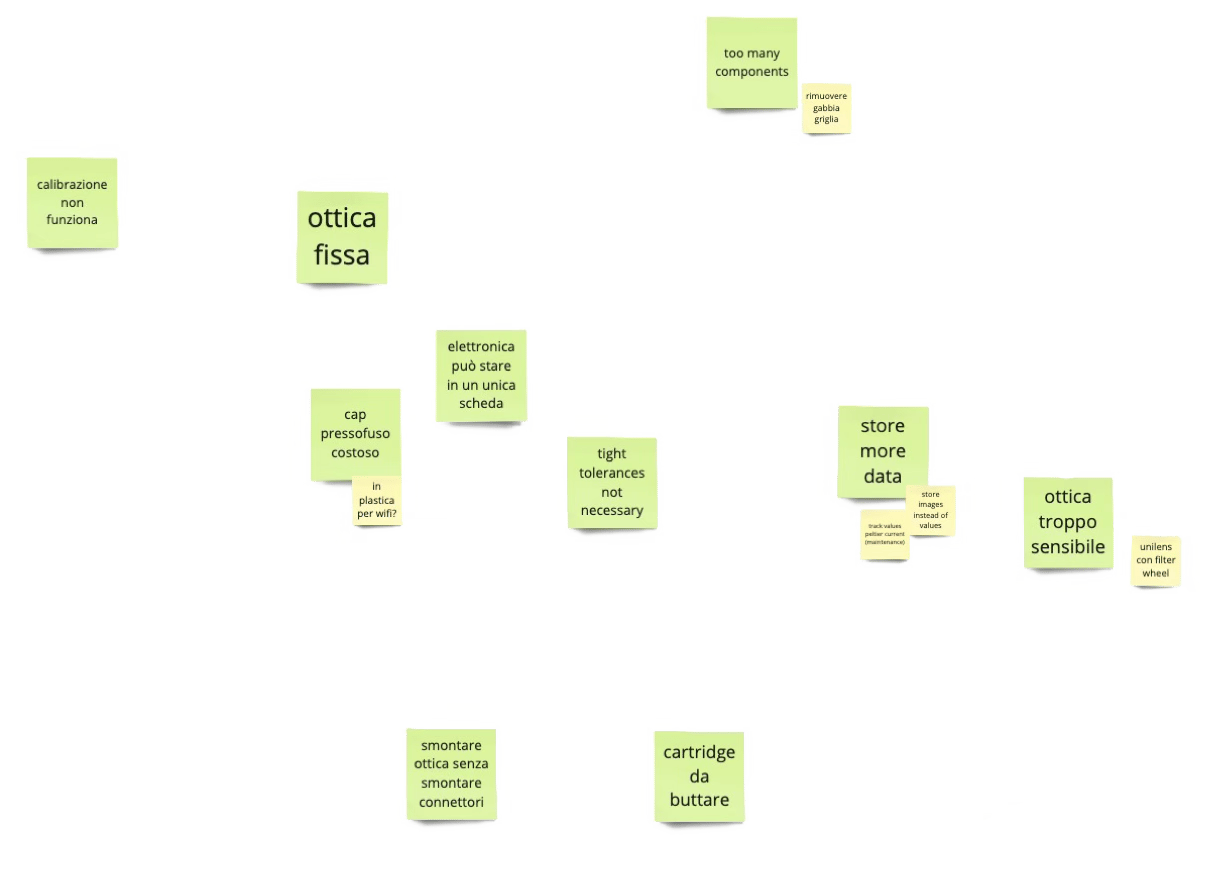

Identifying requirements

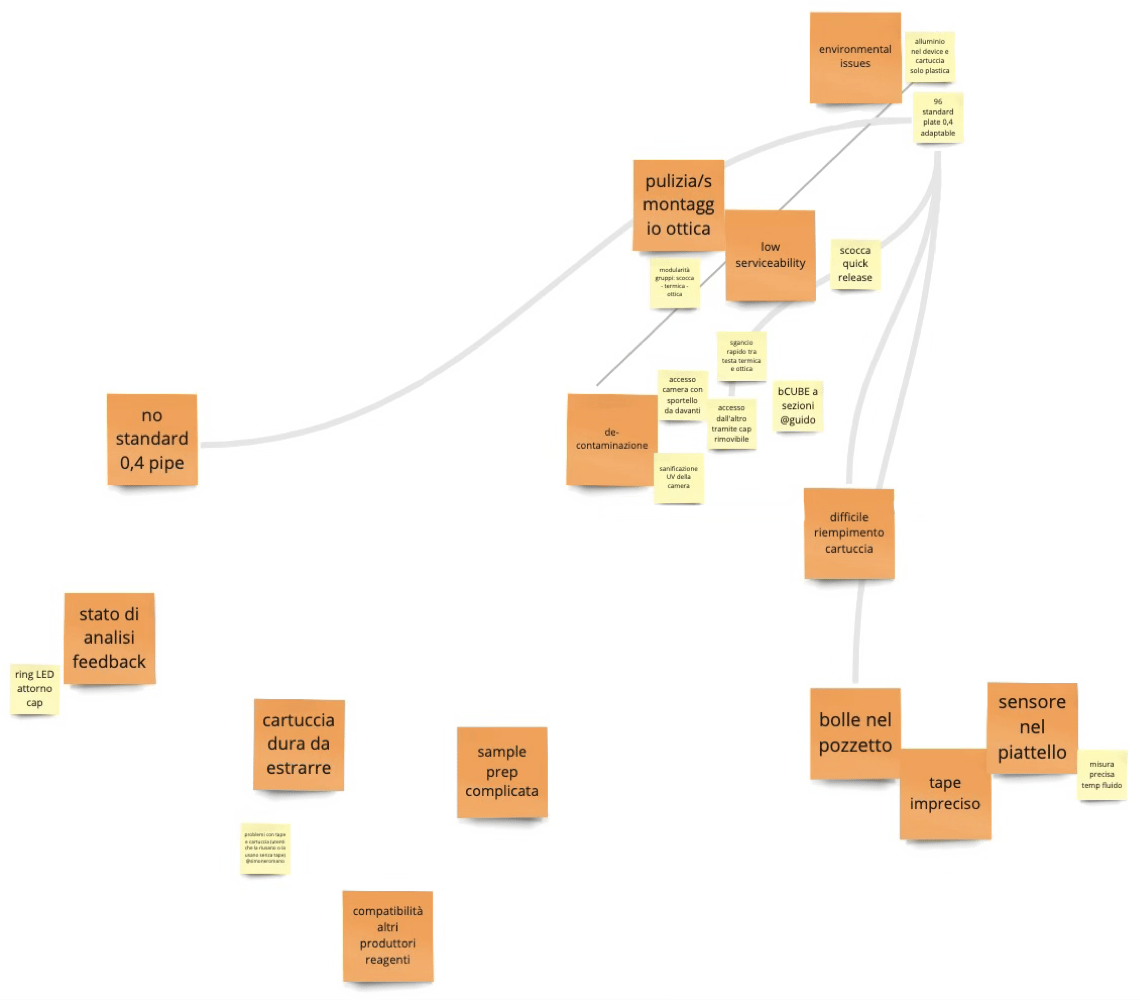

To kick off the design phase, I worked closely with the R&D team to analyse the product, its key features and defining requirements. We established a set of design guidelines aimed at driving improvements across all aspects of the product.
Cost optimization
Reduce components to simplify assembly/disassembly procedures.
Brand identity
Design language built for future products and Hyris brand values.
Performance
A faster PCR analysis whit multiple wavelengths detection.
User experience
Clear feedback on analysis and easy access to the reaction chamber.
Redesign a portable and fast PCR machine
with minimal custom components.
Thermal module
Allow 5°C/s heating and cooling ramps to enable fast and efficient PCR cycling.

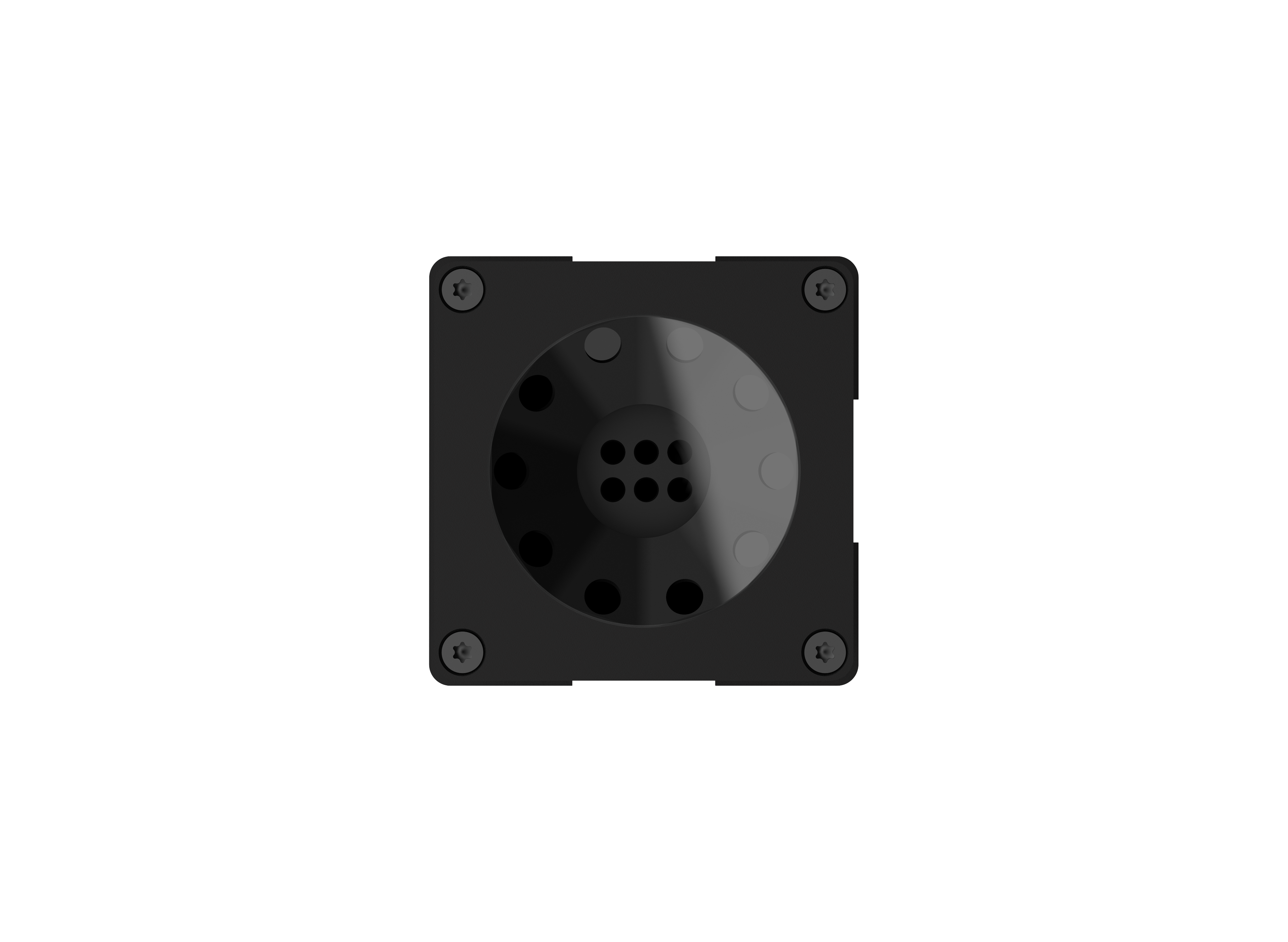

Optical module
Detect multiple fluorophores, including FAM, HEX, VIC™, ROX, CY5™ and QUASAR™.
Direct feedback
The system must provide clear and immediate feedback on the current state of the analysis.
Assembly/disassembly efficiency by allowing quick access for cleaning and maintenance.
Minimal assembly

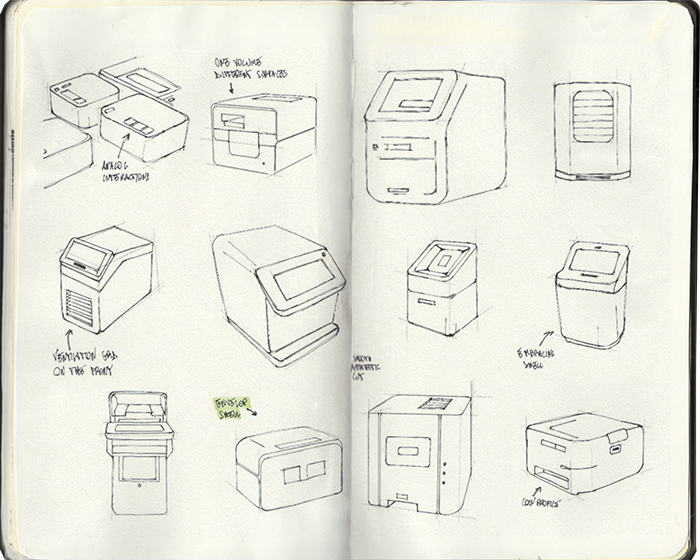

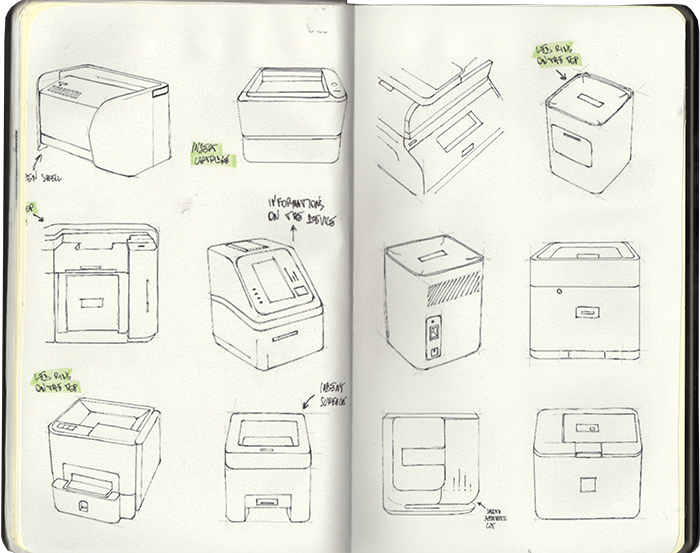

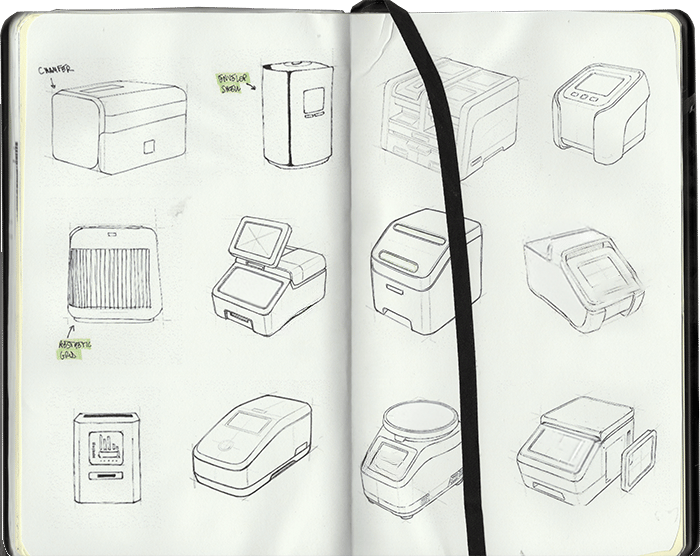

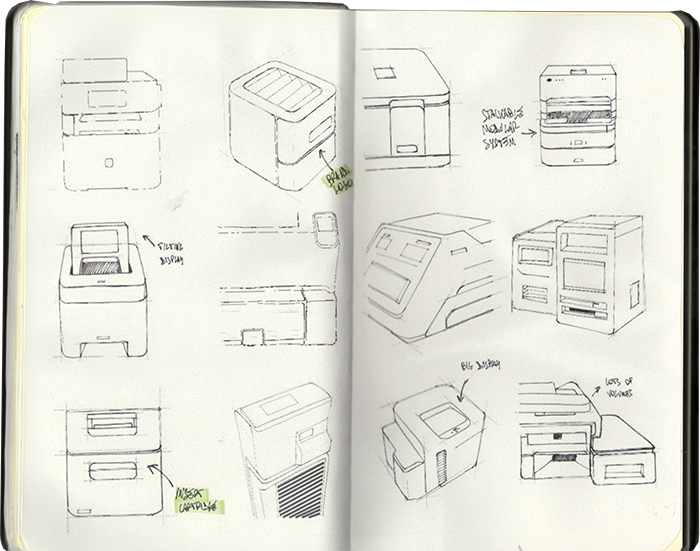

Form exploration driven by airflow

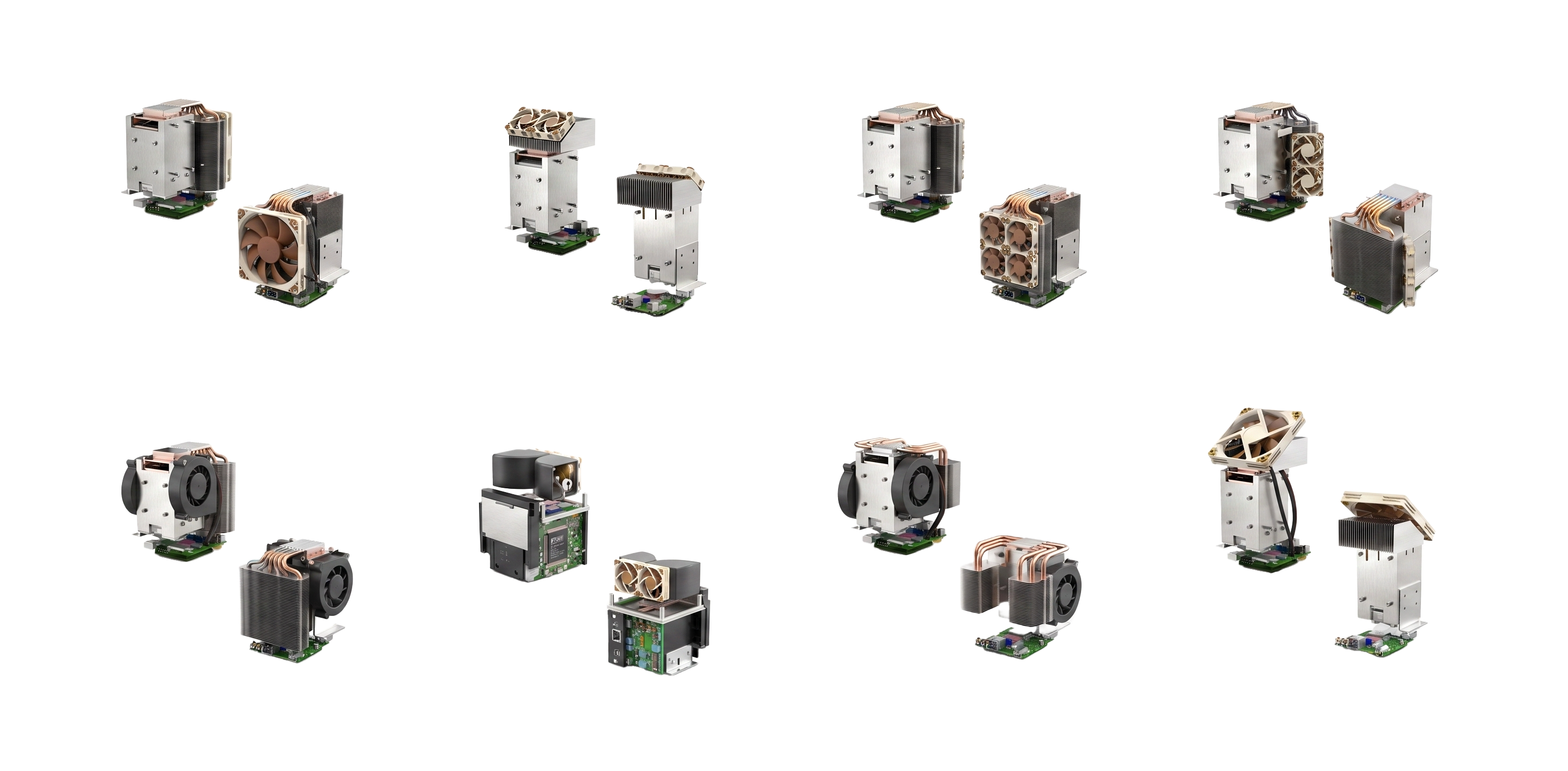

Form development was driven by the need to optimise air circulation for faster cooling. Different configurations and shapes were explored to maximise airflow while maintaining a compact footprint and directing hot air away from the user.
radial fan on each side
four small axial fan
axial on the back
45° axial fan
45° double axial fan

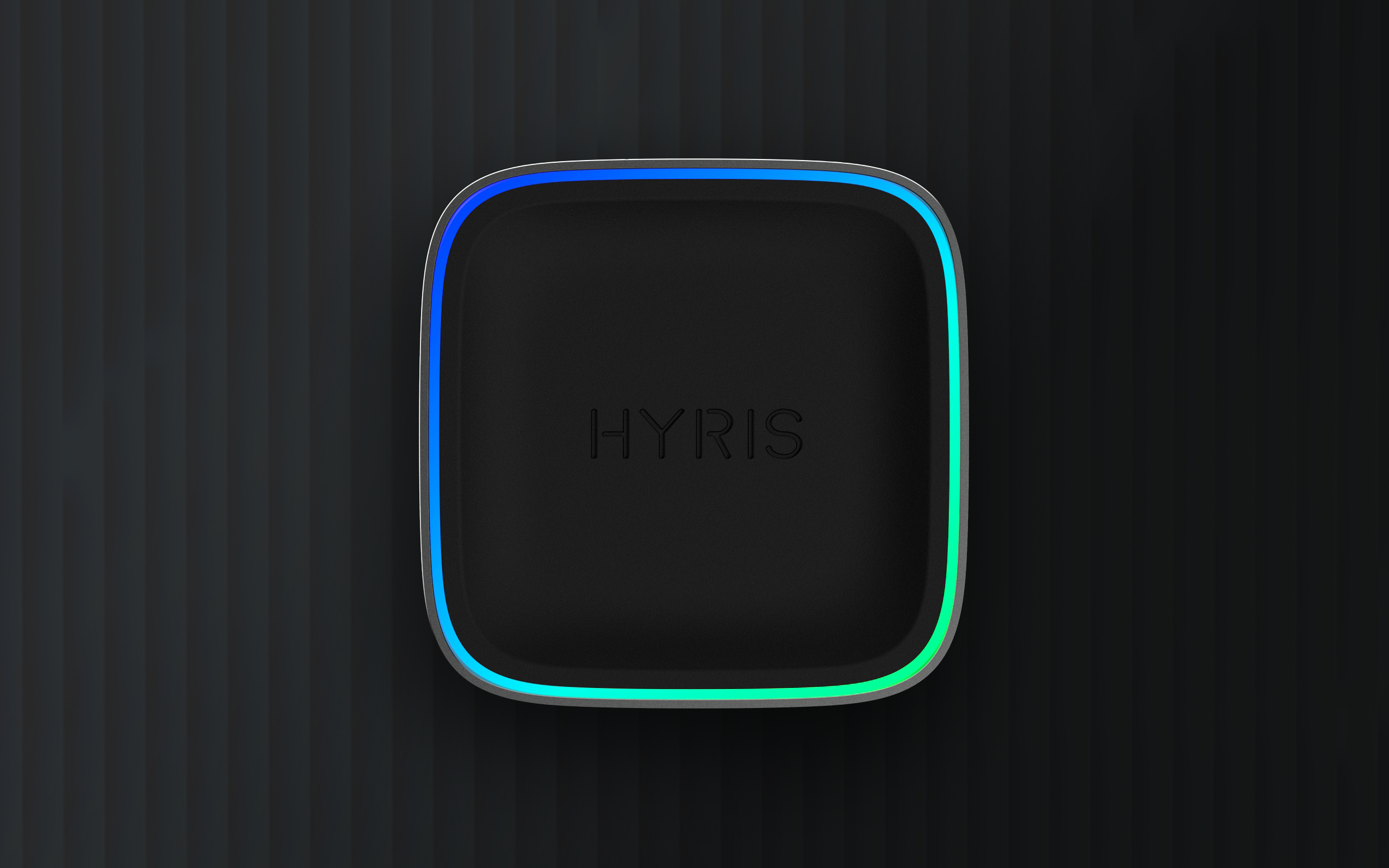

Premium laboratory aesthetics

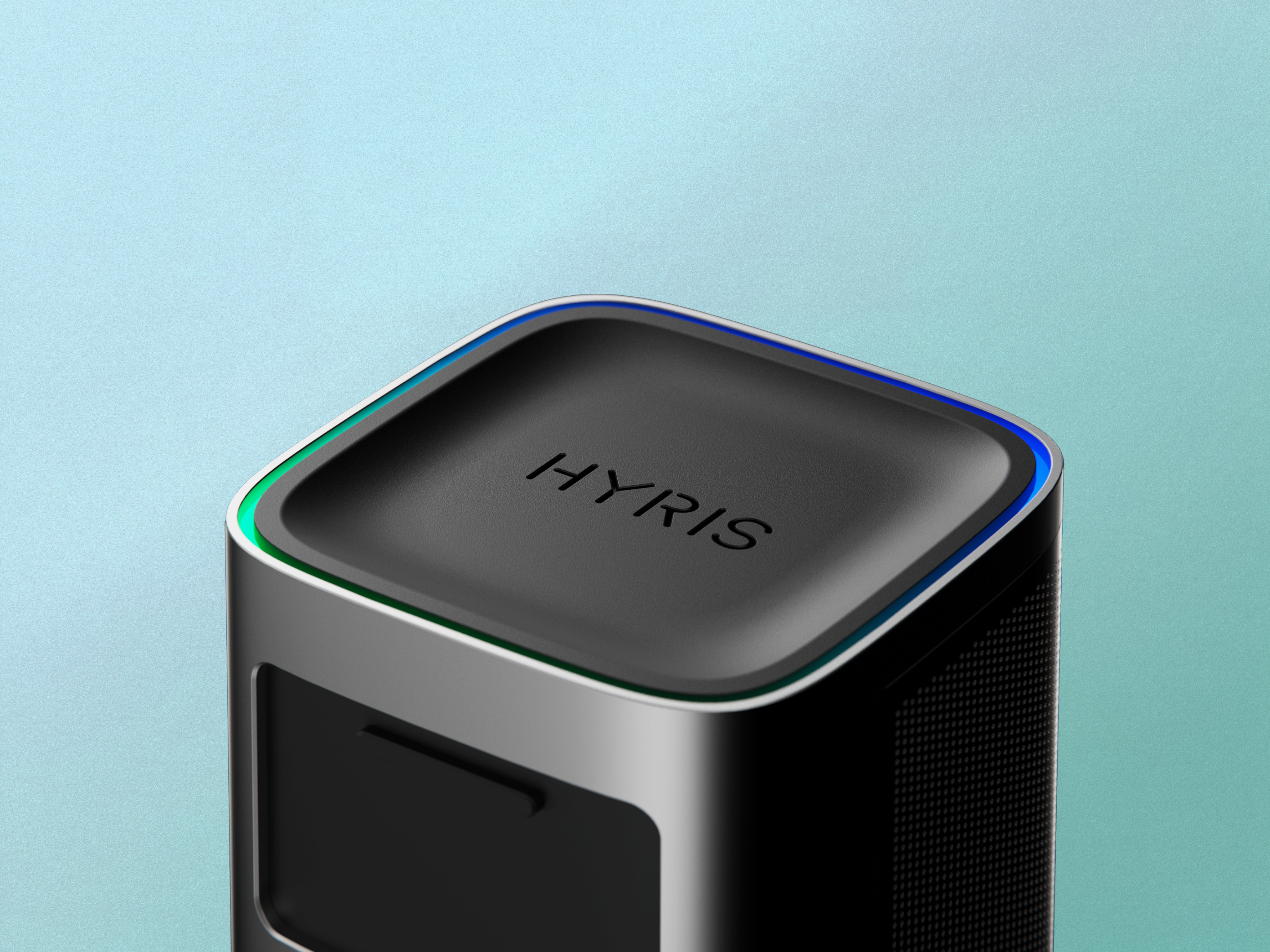

The design is based on simple, solid volumes softened by continuous curvature, balancing precision with approachability. Materials, colours, and finishes are selected to express the brand’s core values: influential, magnetic, and direct.
Down to the smallest detail

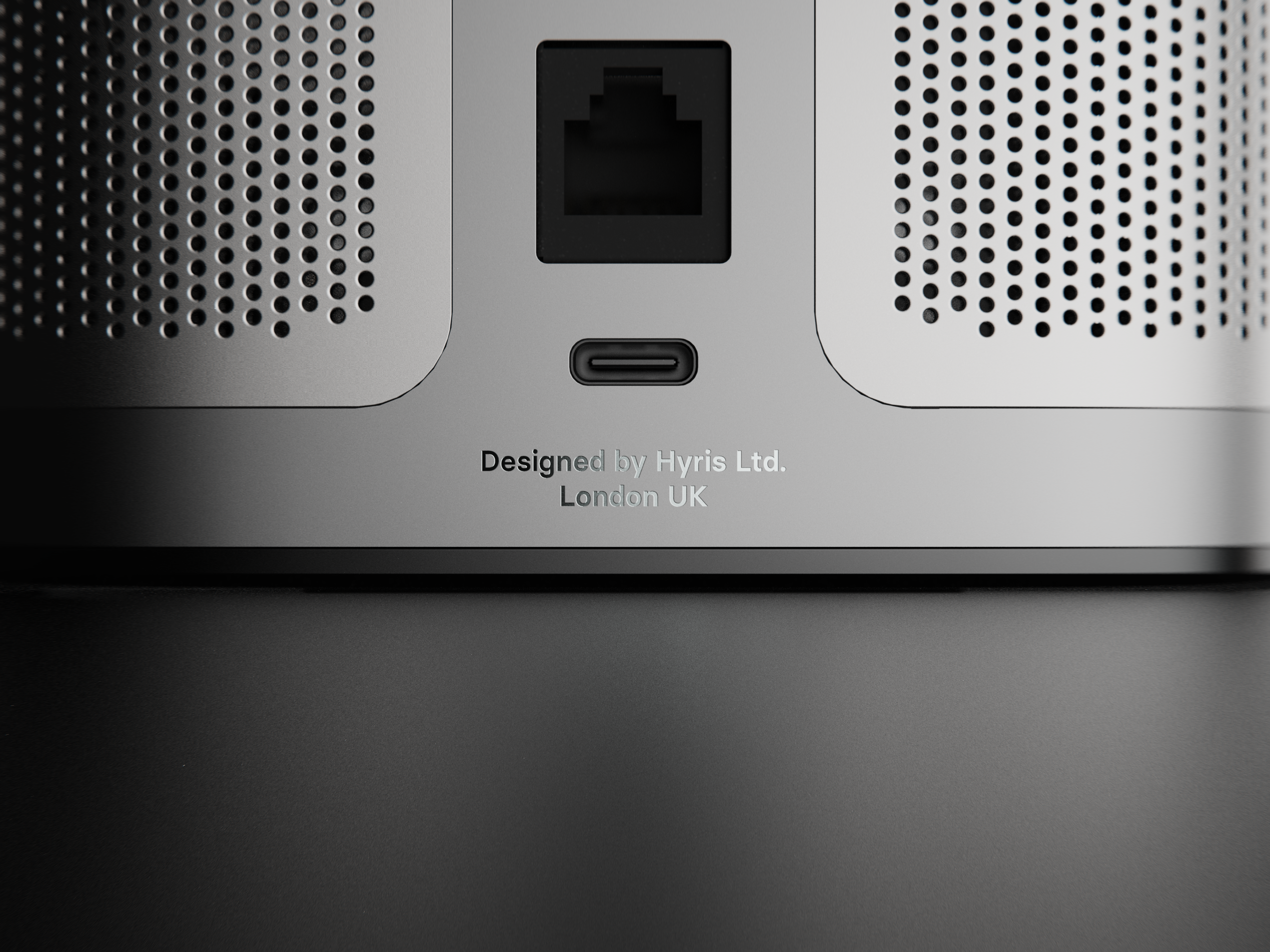

Hyris stands for reliability and precision, where no detail is left to chance. Every element of the product is designed to communicate the brand’s values, translating care and accuracy into a tangible experience for the user.
Form follows function

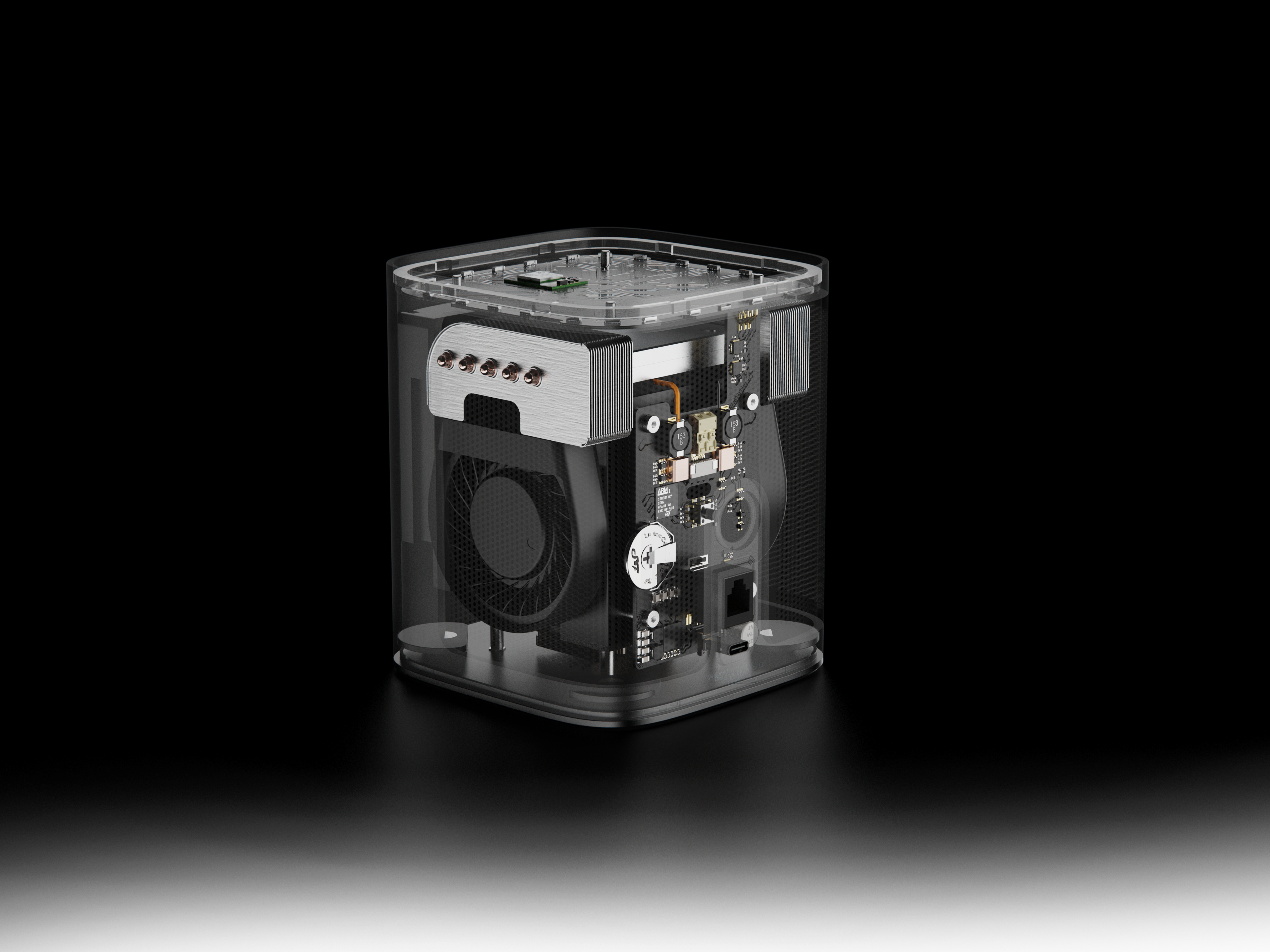

The internal architecture is designed as a compact, integrated block that minimises space and unnecessary volumes. Every element is shaped by functional needs such as airflow and thermal management.
Sturdy, durable and highly reliable

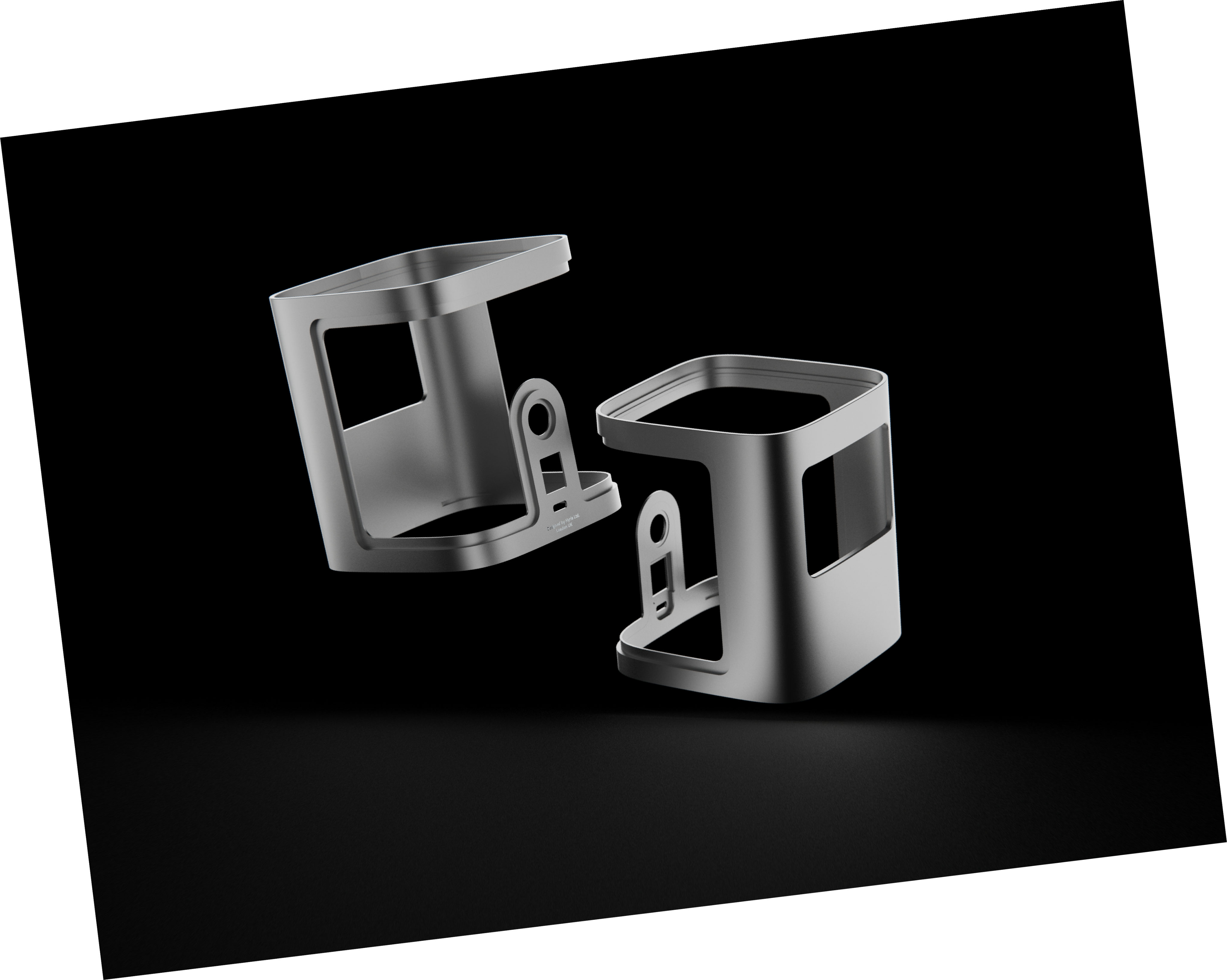

The outer body serves as both structure and protection, designed as a seamless, single-piece CNC machined aluminium shell. This approach ensures maximum strength, durability, and long-term reliability.

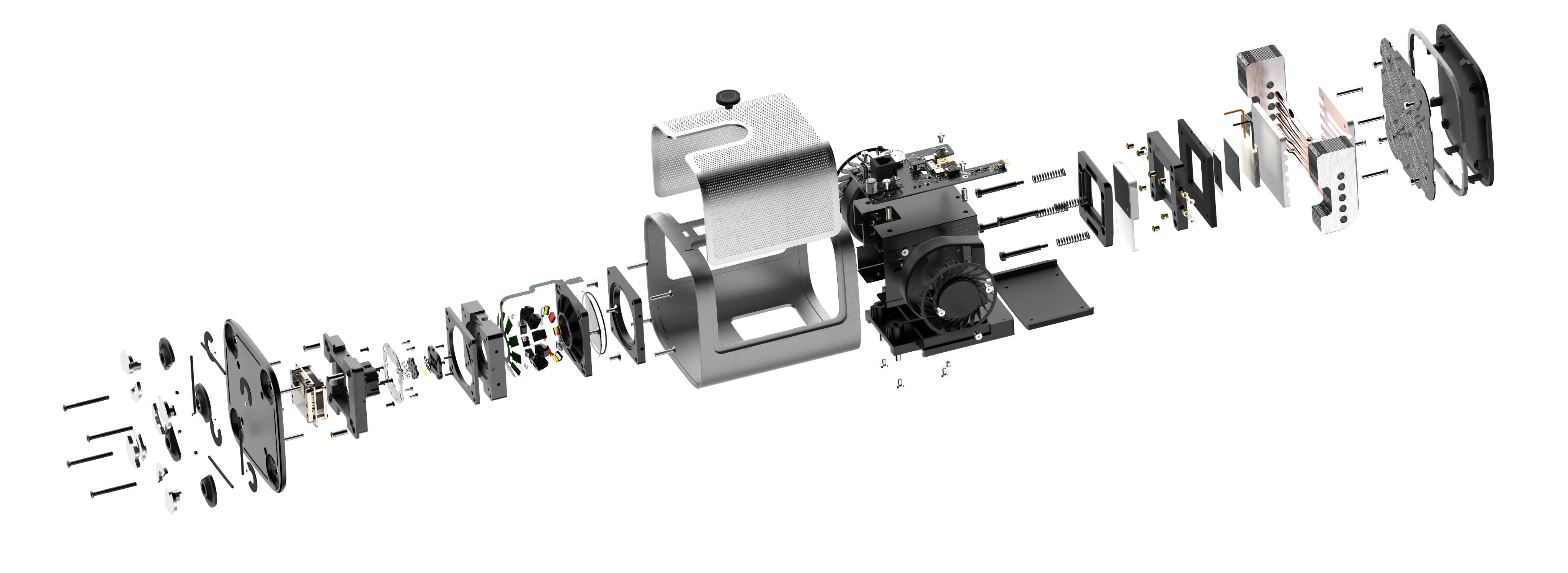

Complexity made simple

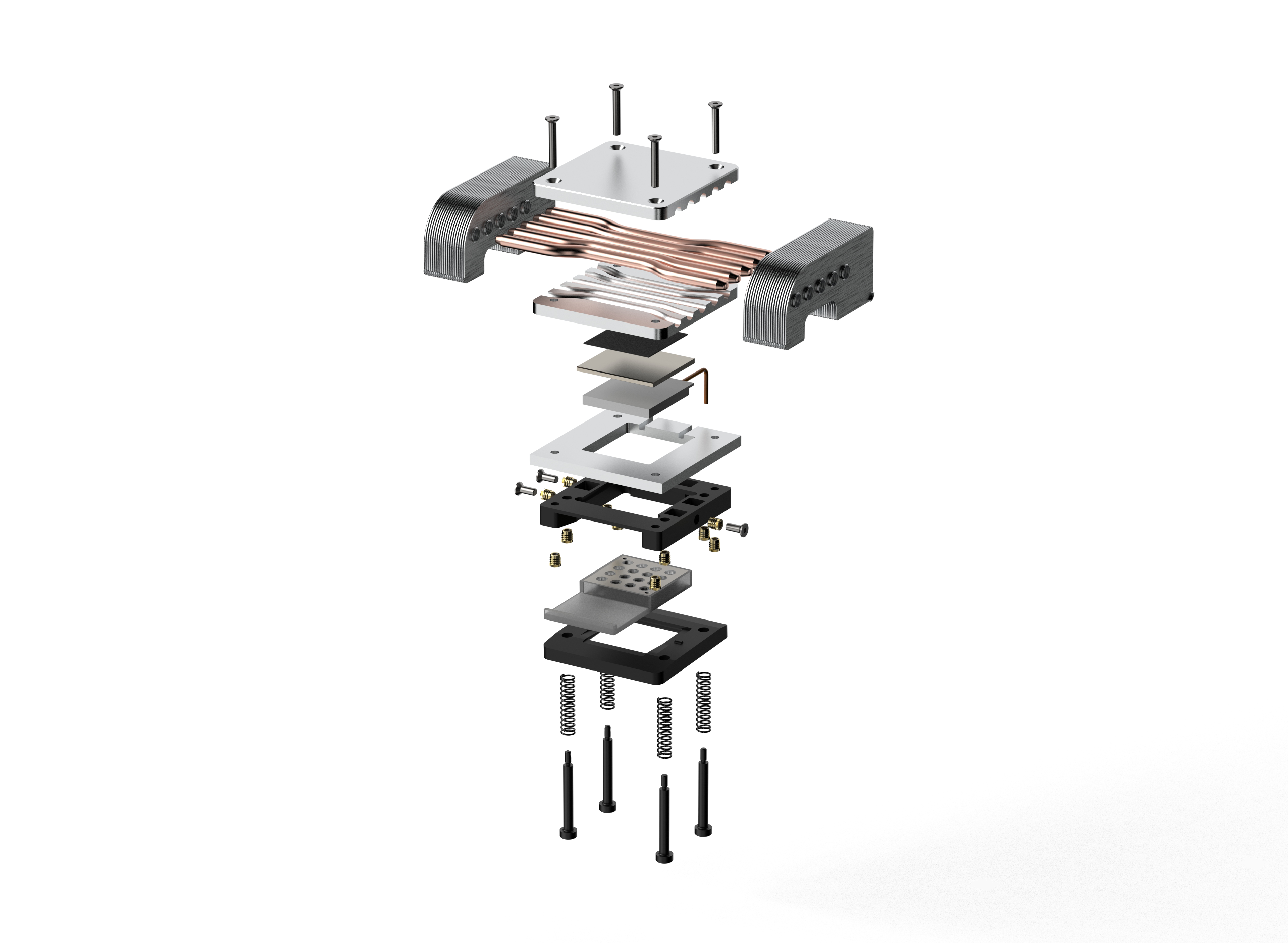

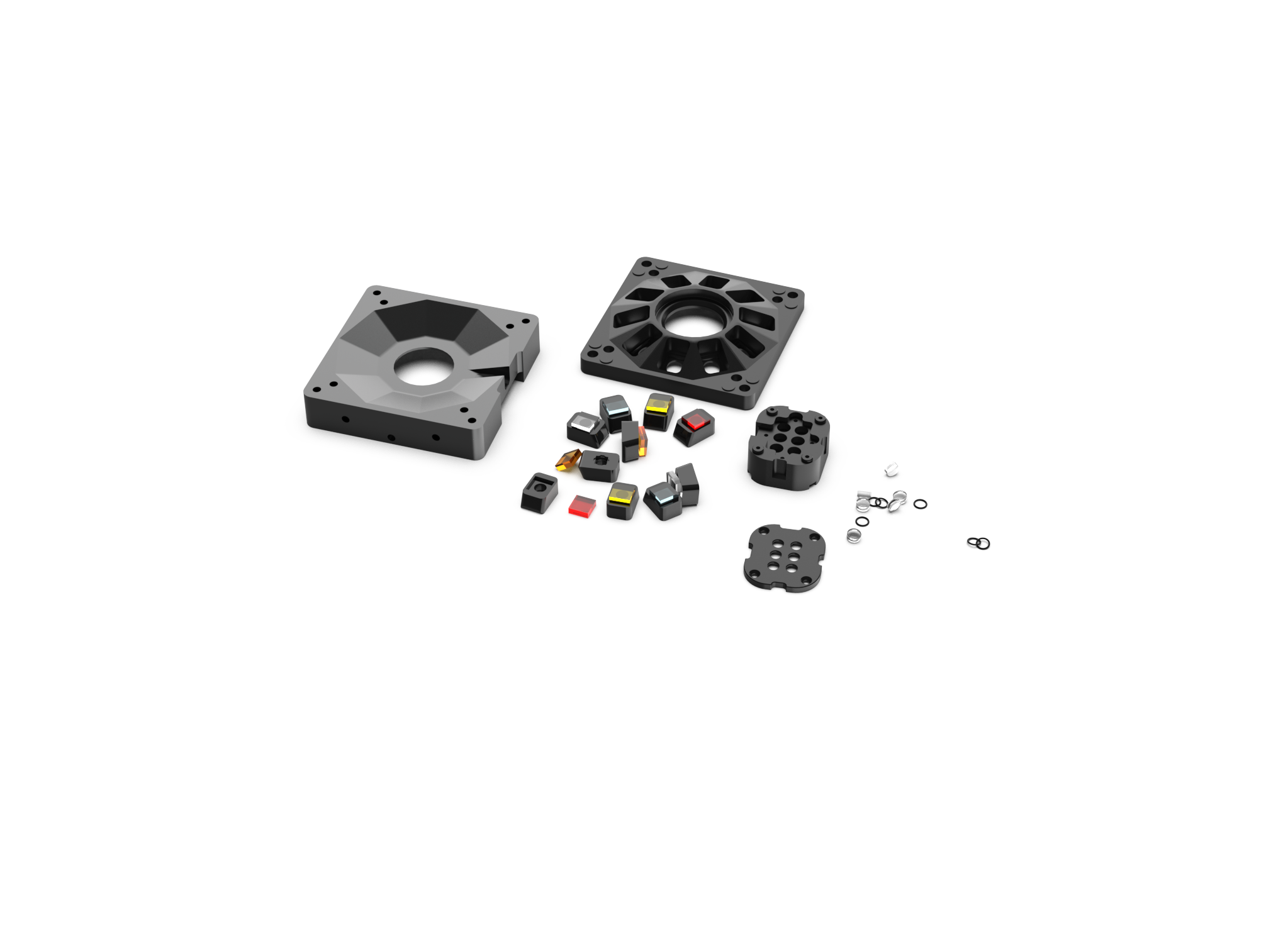

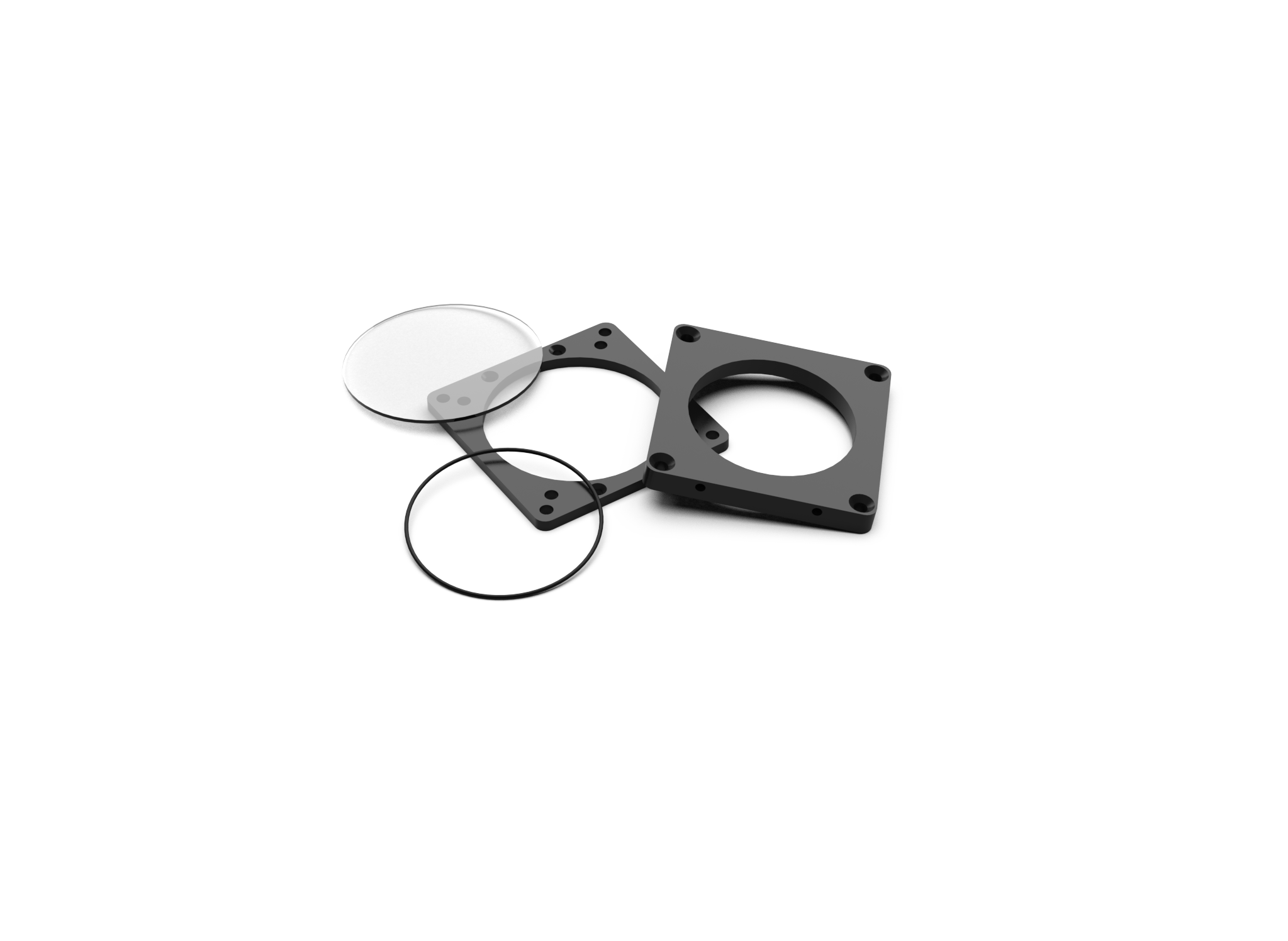

The thermal and optical modules are highly complex assemblies with numerous components. Despite this, the system is designed to integrate them into a compact architecture maximising portability and durability.
Operational efficiency

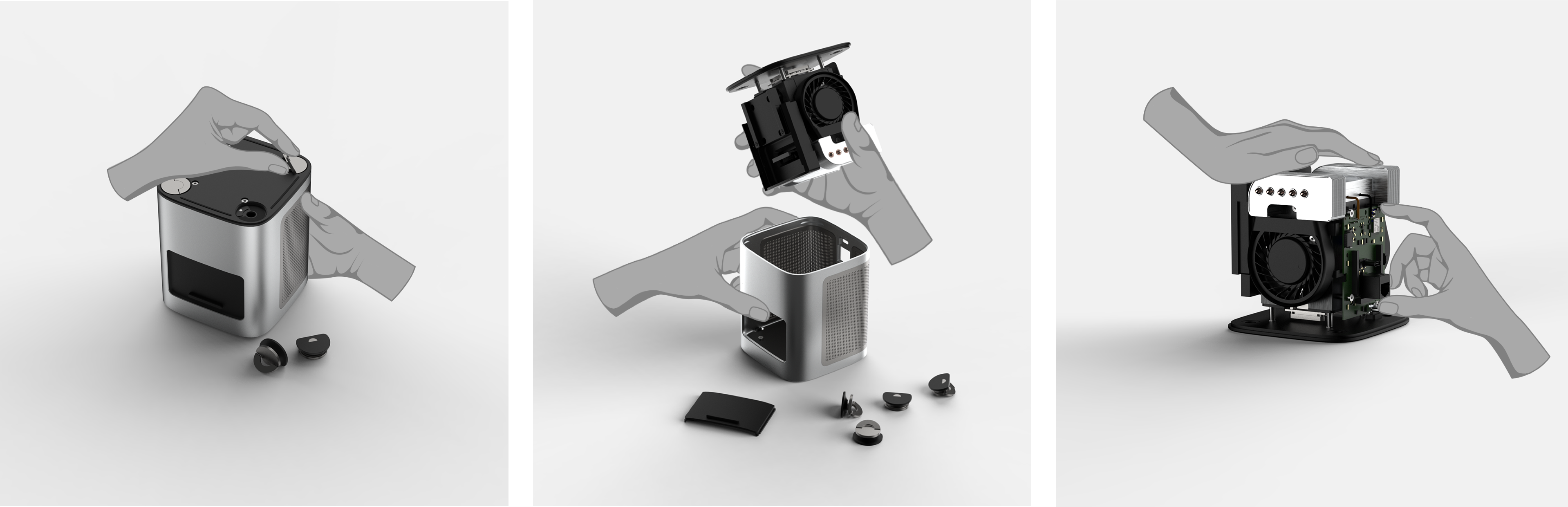

bCUBE+ is designed for quick and intuitive disassembly, allowing operators to access internal components in just a few steps. This reduces downtime and simplifies cleaning, servicing, and part replacement.

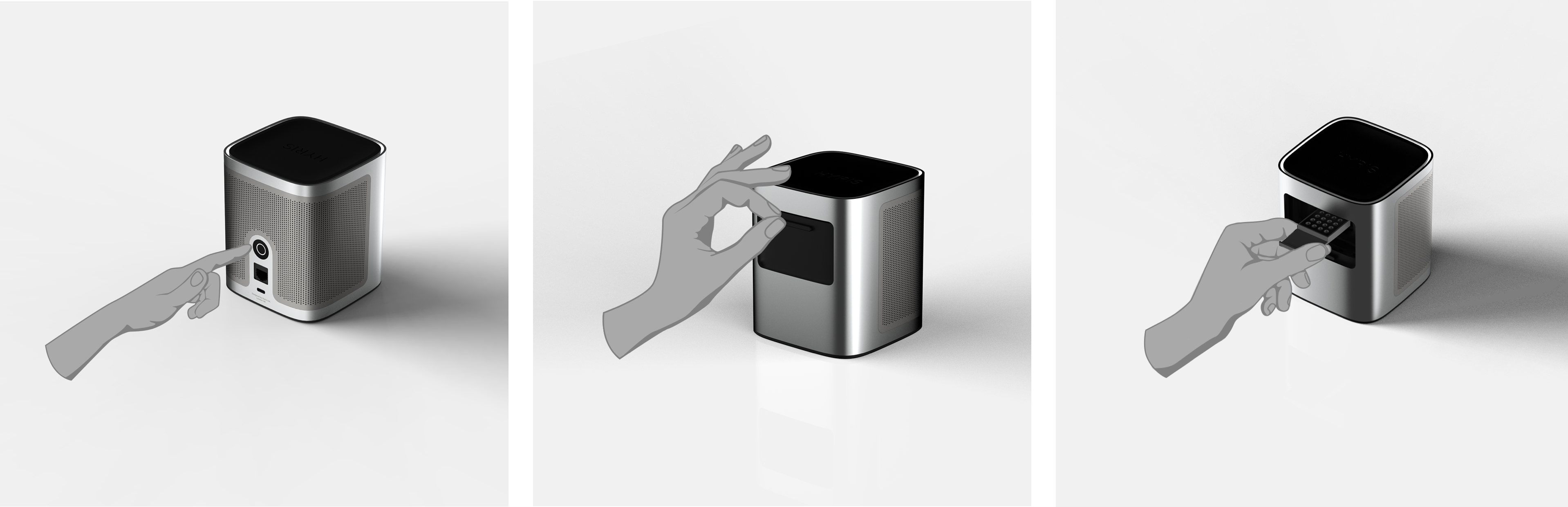

starting a new analysis
regular maintenance
repair-recalibrate-replace
insert the cartridge
Materials
As a laboratory instrument, precision and reliability drive material and manufacturing choices. Many components are CNC machined to ensure tight tolerances, high accuracy, and long-term stability.
PC-ABS
AlMn 3003
PEEK
AlMg 5086
AISI 316
POM
Copper
PC-ABS
PC
Aluminium
PS
AlMgSi 6060
Silicone
